Hydrometers

UNIVERSAL HYDROMETERS

Universal densitometers are intended to measure the density of any liquid, regardless of the value of its surface tension. The reading should be performed at a temperature equal to the reference temperature (20 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

UNIVERSAL HYDROMETERS TYP „A”

Measurement range g/cm³	Minimum graduation g/cm³
0,600÷0,700	0,001
0,700÷0,800
0,800÷0,900
0,900÷1,000
1,000÷1,100
1,100÷1,200
1,200÷1,300
1,300÷1,400
1,400÷1,500
1,500÷1,600
1,600÷1,700
1,700÷1,800
1,800÷1,900
1,900÷2,000

UNIVERSAL HYDROMETERS TYP „B”

Measurement range g/cm³	Minimum graduation g/cm³
0,600÷0,650	0,001
0,650÷0,700
0,700÷0,750
0,750÷0,800
0,800÷0,850
0,850÷0,900
0,900÷0,950
0,950÷1,000
1,000÷1,050
1,050÷1,100
1,100÷1,150
1,150÷1,200
1,200÷1,250
1,250÷1,300
1,300÷1,350
1,350÷1,400
1,400÷1,450
1,450÷1,500
1,500÷1,550
1,550÷1,600
1,600÷1,650
1,650÷1,700
1,700÷1,750
1,750÷1,800
1,800÷1,850
1,850÷1,900
1,900÷1,950
1,950÷2,000

UNIVERSAL HYDROMETERS TYP „C”

Measurement range g/cm³	Minimum graduation g/cm³
0,800÷1,000	0,002
1,000÷1,200
1,200÷1,400
1,400÷1,600
1,600÷1,800
1,800÷2,000

UNIVERSAL HYDROMETERS TYP „D”

Measurement range g/cm³	Minimum graduation g/cm³
0,600÷0,700	0,002
0,700÷0,800
0,800÷0,900
0,900÷1,000
1,000÷1,100
1,100÷1,200
1,200÷1,300
1,300÷1,400
1,400÷1,500
1,500÷1,600
1,600÷1,700
1,700÷1,800
1,800÷1,900
1,900÷2,000

UNIVERSAL HYDROMETERS TYP „Deu”

Measurement range g/cm³	Minimum graduation g/cm³
0,600÷0,660	0,001
0,650÷0,710
0,700÷0,760
0,750÷0,810
0,800÷0,860
0,850÷0,910
0,900÷0,960
0,950÷1,010
1,000÷1,060
1,050÷1,110
1,100÷1,160
1,150÷1,210
1,200÷1,260
1,250÷1,310
1,300÷1,360
1,350÷1,410
1,400÷1,460
1,450÷1,510
1,500÷1,560
1,550÷1,610
1,600÷1,660
1,650÷1,710
1,700÷1,760
1,750÷1,810
1,800÷1,860
1,850÷1,910
1,900÷1,960
1,950÷2,010

0,800÷2,000

0,800÷1,300 – 0,02

1,300÷2,000 –0,1

1,000÷1,130

0,001

SCHOOL UNIVERSAL HYDROMETERS

Measurement range g/cm³	Minimum graduation g/cm³
0,700÷1,000	0,01
1,000÷1,500
1,500÷2,000

Densymetr glebowy
Densymetr do gruntu

SOIL HYDROMETER

The soil densitometer is intended for sedimentation analysis of soils. The reading should be performed at a temperature equal to the reference temperature (20 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

-10 ÷ +30

0,1

The soil densitometer corresponds to a universal densitometer 0.990 -1.030 [g/cm3] within the range of minimum graduation of 0.001 [g/cm3] at the reference temperature of 20 °C.

Densymetry do moczy (urometry)
1,030-1,060

HYDROMETERS FOR URINE - UROMETERS

Densitometers for urine (urometers) are used only to measure the density of urine.The reading should be performed at a temperature equal to the reference temperature (20 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

1,000÷1,030

0,001

1,030÷1,060

Densymetr do mleka wapiennego
Densymetr 1,000-1,300

HYDROMETER FOR LIMEWATER

Densitometers for limewater are intended to measure the density of limewater. The reading should be performed at a temperature equal to the reference temperature (20 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

1,000÷1,300

0,005

Densymetr do biopaliw
0,810-0,860

HYDROMETER FOR BIOFUELS

Densitometers for biofuels are intended to measure the density of biofuels. The reading should be performed at a temperature equal to the reference temperature (15 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

0,810÷0,860

0,002

Densymetr do kwasu akumulatorowego
1,150-1,300

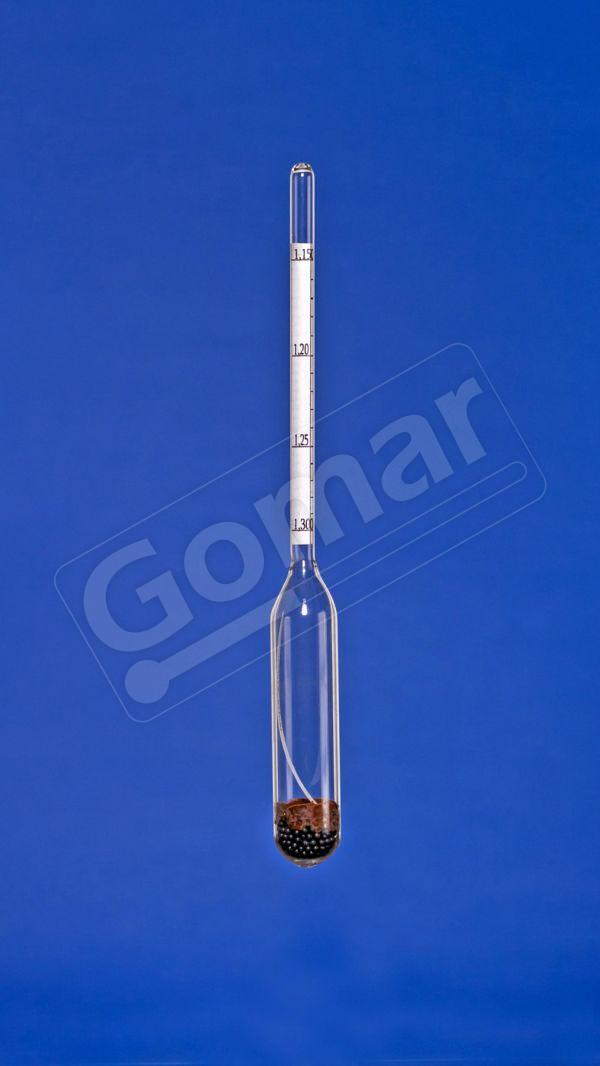

HYDROMETER OR BATTERY ACID

Densitometers for battery acid are intended to measure the density of battery acid. The reading should be performed at a temperature equal to the reference temperature (20 °C) and within the range of the densitometric scale. Correct reading of concentration of a solution is achieved by the top reading. (look in „Useful information – Top reading vs. botom reading”)

1,150÷1,300

0,005
